Hydraulic Cylinders and Rams

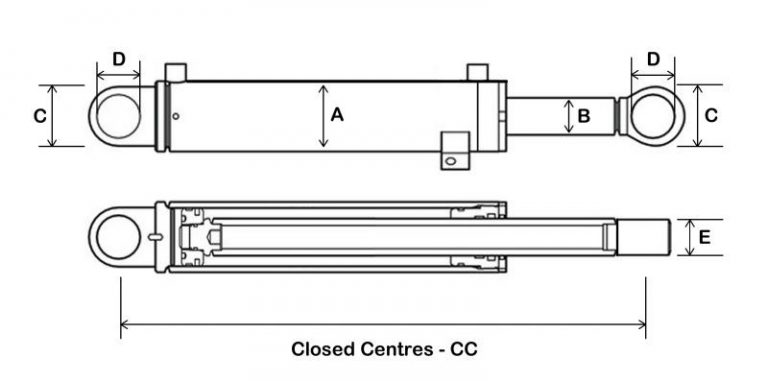

Please match up your cylinder or ram that is required with the diagram and the dimensions below.

If you need any further help or you have different dimension, please call us on 01274-406725 so we can help your further.

Bore "A"	Rod "B"	Closed Centres - "CC"	Eye - "C"	Pin Size "D"	Rod Eye Length "E"	Capacity (210 bar)

50	30	260	45	21	40	3.8 Ton
50	30	360	45	21	40	3.8 Ton
50	30	460	45	21	40	3.8 Ton
50	30	560	45	21	40	3.8 Ton
50	30	660	45	21	40	3.8 Ton
50	30	760	45	21	40	3.8 Ton
50	30	860	45	21	40	3.8 Ton

60	40	270	45	26	50	5.9 Ton
60	40	370	45	26	50	5.9 Ton
60	40	470	45	26	50	5.9 Ton
60	40	570	45	26	50	5.9 Ton
60	40	670	45	26	50	5.9 Ton
60	40	770	45	26	50	5.9 Ton
60	40	870	45	26	50	5.9 Ton

70	40	270	45	26	50	8.2 Ton
70	40	370	45	26	50	8.2 Ton
70	40	470	45	26	50	8.2 Ton
70	40	570	45	26	50	8.2 Ton
70	40	670	45	26	50	8.2 Ton
70	40	770	45	26	50	8.2 Ton
70	40	870	45	26	50	8.2 Ton

80	45	400	45	26	60	10 Ton
80	45	500	45	26	60	10 Ton
80	45	600	45	26	60	10 Ton
80	45	700	45	26	60	10 Ton
80	45	800	45	26	60	10 Ton
80	45	900	45	26	60	10 Ton

90	50	500	50	26	60	13.4 Ton
90	50	600	50	26	60	13.4 Ton
90	50	700	50	26	60	13.4 Ton
90	50	800	50	26	60	13.4 Ton
90	50	900	50	26	60	13.4 Ton

100	50	500	50	31	60	16.5 Ton
100	50	600	50	31	60	16.5 Ton
100	50	700	50	31	60	16.5 Ton
100	50	800	50	31	60	16.5 Ton
100	50	900	50	31	60	16.5 Ton

If you need further help to find the correct hydraulic cylinder that you require, then please
fill in as much information as you can into the form below and we will get back to you ASAP!
